Flush Your Troubles Away: A DIY Guide to Toilet Flush Valve Repair

By Brian on August 12, 2026

Stop a Running Toilet Before It Wastes Water

Fixing the flush valve on a toilet can stop the slow refill, hissing sound, or “phantom flush” that wastes water and raises your bill. A worn flapper is often the simple cause, but a cracked flush valve, damaged valve seat, or poorly adjusted fill valve can create the same symptom.

Quick answer: Turn off the water, flush and watch the tank. If water slowly leaks from the tank into the bowl, start by checking the flapper and its chain. If a new, correctly sized flapper still will not seal, or the flush valve seat is cracked, warped, or badly pitted, replace the full flush valve assembly.

A running toilet can waste as much as 200 gallons a day. The good news is that many standard two-piece toilet repairs are manageable for a careful DIYer. Parts commonly cost about $20 to $55, while professional repair costs more depending on the toilet and the condition of its parts.

This guide explains how to identify the failed part, choose the right 2-inch or 3-inch replacement valve, install it without cracking the tank, and know when a leak calls for professional help.

Fixing the flush valve on a toilet terms to learn:

• changing a toilet float valve
• removing toilet fill valve
• replace bottom entry fill valve

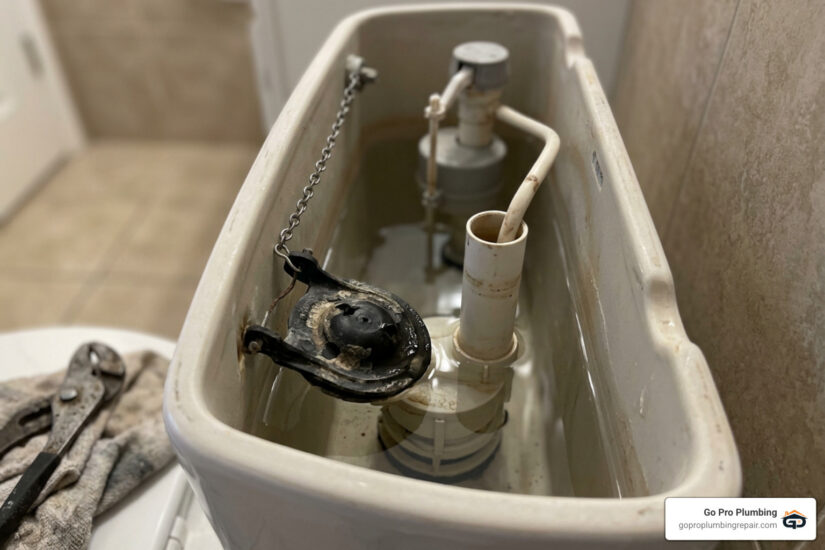

Anatomy of a Toilet: Flush Valve vs. Fill Valve vs. Flapper

Before picking up a wrench, it helps to understand what is actually happening inside your toilet tank. When homeowners call us about Toilet Flush Valve Problems, they often confuse the three major internal components: the fill valve, the flapper, and the flush valve.

1. The Fill Valve: Located on the left side of the tank, this component brings fresh water into the tank from your home’s water supply line after every flush. It uses an internal float mechanism to stop filling once water reaches the set line.
2. The Flapper: This flexible rubber or vinyl cap hinges onto the base of the flush valve. When you press the handle, the chain lifts the flapper, allowing stored water to rush down into the bowl. Once the tank empties, gravity drops the flapper back onto the valve seat to form a watertight seal.
3. The Flush Valve Assembly: This is the plastic or brass structural tower positioned in the middle bottom opening of the tank. It consists of the plastic drain seat at the bottom, an integrated overflow tube, and mounting points for the flapper. The tailpiece extends through the tank floor, secured underneath by a massive locknut and sealed with a heavy rubber spud washer or sponge gasket.

When a toilet “phantom flushes”—trickling water into the bowl and turning itself back on every 15 to 30 minutes to refill—the issue stems from water escaping past the flush valve seal.

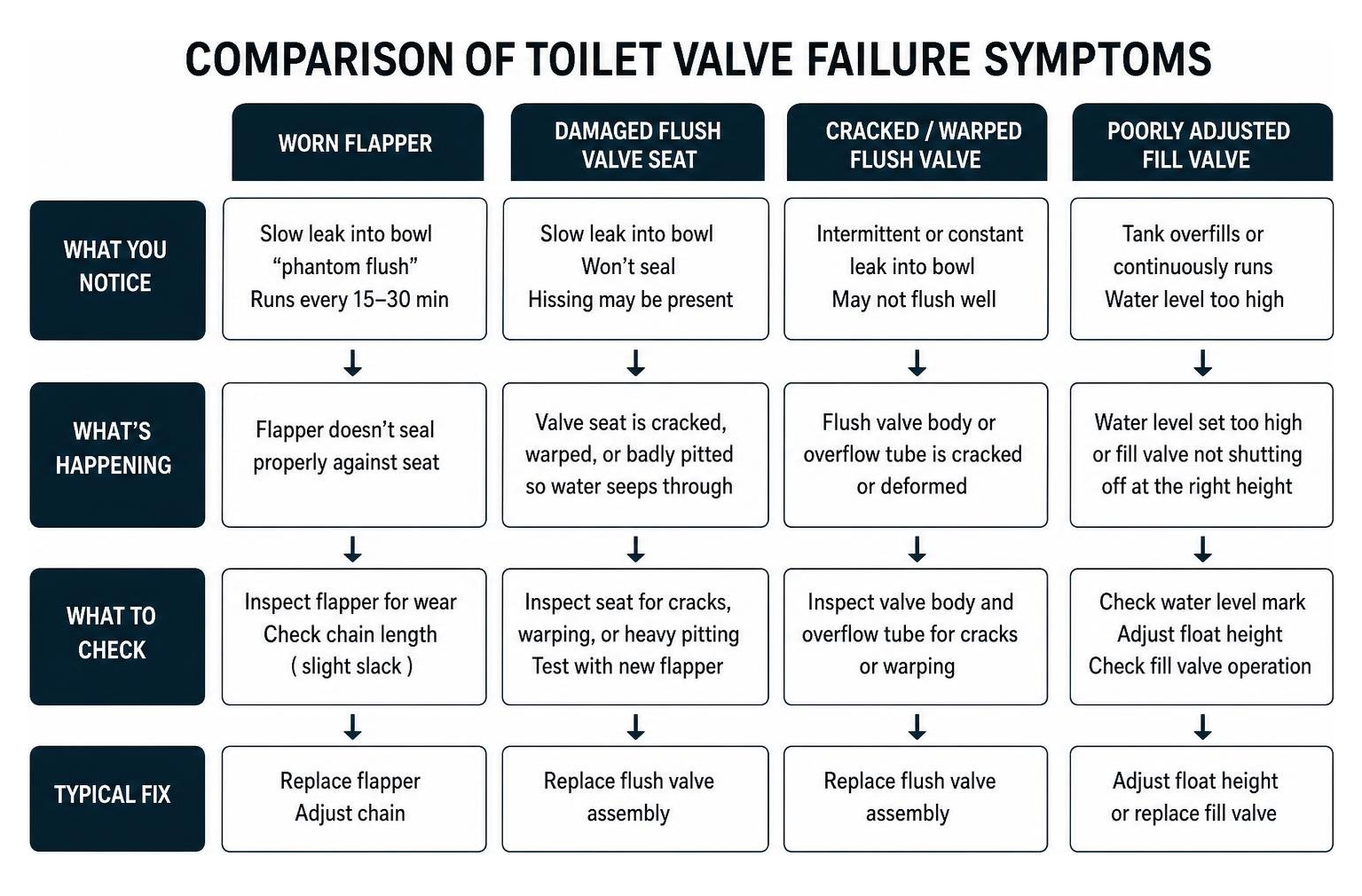

How to Diagnose a Faulty Flush Valve

Most toilet leaks are caused by a worn flapper rather than a full flush valve failure. Before disassembling your whole toilet, run this 4-minute diagnostic test:

1. The Pencil-Mark Diagnostic Test: Remove the tank lid and shut off the water supply valve behind the toilet. Take a pencil and mark the exact water line inside the tank. Wait 30 to 45 minutes without flushing.
2. Evaluate the Water Drop:
   • If the water level drops down to the top edge of the flapper and stops completely, the flapper is not sealing properly. You likely only need to replace the flapper ($5–$15). You can check our detailed guide on How to Fix a Toilet Flapper Seal That Just Won’t Quit.
   • If the water level drains below the flapper, past the valve seat, or empties out completely, the leak is bypassing the flapper seal. This means the flush valve body itself is cracked, or the gasket underneath the valve is failing.
3. Inspect the Valve Seat: Reach into the tank (with the water drained) and run your clean finger around the plastic rim where the flapper rests. If you feel mineral build-up, rough pitting, or physical cracks in the plastic lip, a new flapper will fail to seal. You must replace or repair the flush valve seat.

Preparing for Fixing the Flush Valve on a Toilet: Tools and Sizing

Working with plumbing hardware inside porcelain tanks requires preparation. Ceramic can chip or crack if struck with heavy metal tools, and overtightened plastic locknuts can strip instantly. Gather your materials before turning off your water supply.

Required Tools and Materials:

• Adjustable Wrench / Channel-Lock Pliers: For disconnecting supply lines and loosening large locknuts.
• Spud Wrench (Optional but helpful): Specialized wide-jaw tool designed specifically for removing large flush valve locknuts.
• Sponge & Bucket: To absorb residual standing water at the bottom of the tank.
• Flathead and Phillips Screwdrivers: For unbolting the tank-to-bowl bolts.
• Old Towels or Blankets: To protect your floors and provide a cushioned surface for the removed porcelain tank.
• New Toilet Repair Kit: Including the new flush valve, tank-to-bowl gasket, and new tank bolts.

Sizing Guide: 2-Inch vs. 3-Inch Toilet Flush Valves

Buying the wrong valve size will result in an immediate return trip to the hardware store. Toilets use different flush valve sizes based on their manufacture date and flow design.

• Standard 2-Inch Flush Valves: These are found on roughly 80% of toilets manufactured before the year 2000, as well as many older 3.5 GPF (gallons per flush) and standard 1.6 GPF models. The interior drain opening measures approximately 2 inches across.
• Large 3-Inch (and 4-Inch) Flush Valves: Common on high-efficiency toilets (1.28 GPF or lower) manufactured after 2000. These larger openings allow a rapid surge of water into the bowl for a stronger flush using less water.

How to Measure: Measure the diameter of the flush opening at the bottom of your tank, or measure the inside diameter of your old flapper. If the opening measures around 2 to 2.25 inches, purchase a 2-inch valve. If the opening measures roughly 3 to 3.5 inches across, you need a 3-inch assembly. Consult our dedicated Toilet Repair Kit 3 Inch Guide for brand-specific post-2000 sizing nuances.

Complete Guide to Toilet Flush Valve Replacement

Replacing the entire flush valve on a standard two-piece toilet requires taking the upper tank off the lower bowl. While this sounds daunting, following a structured process makes the job straight forward.

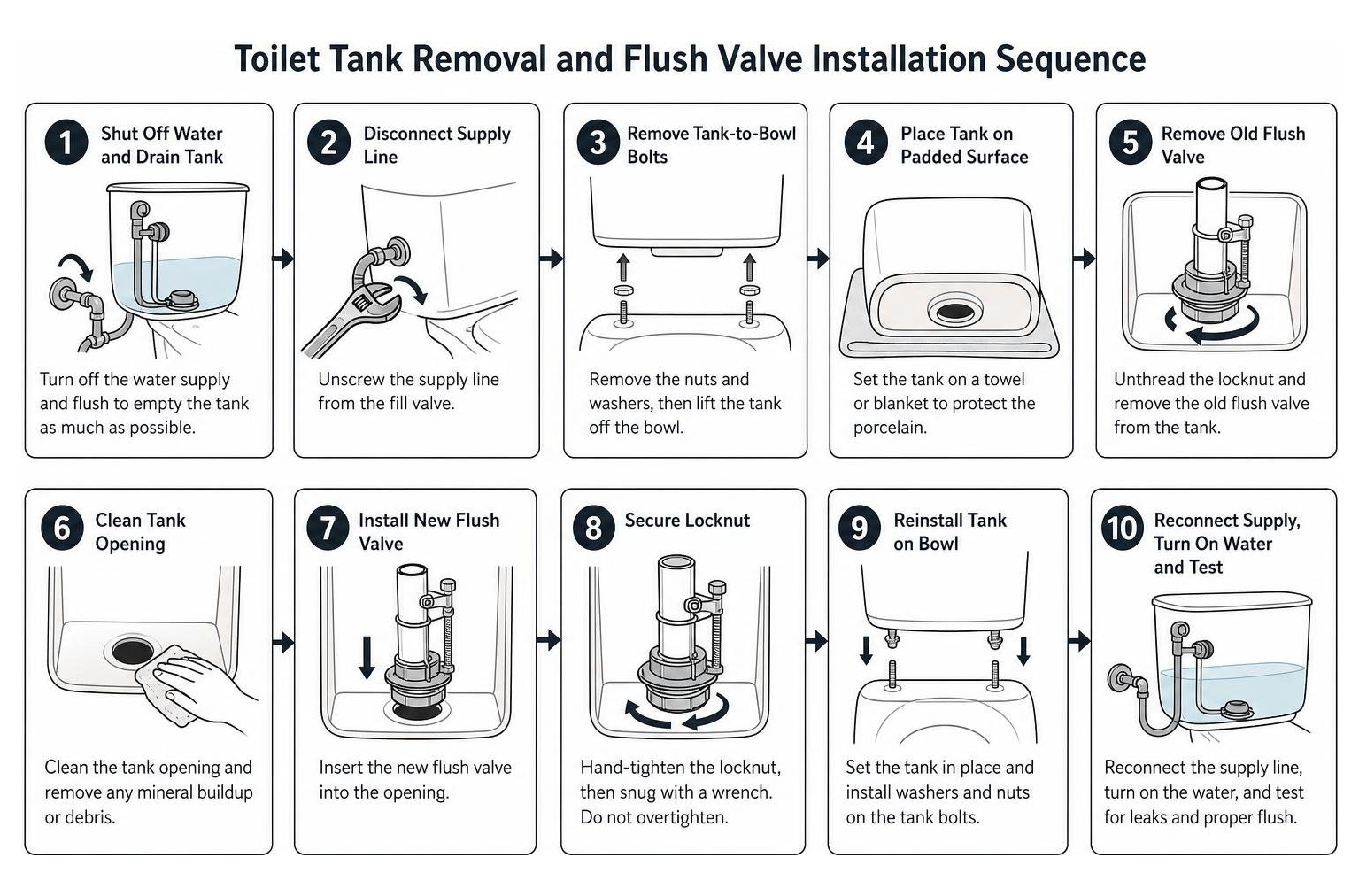

Step-by-Step Process for Fixing the Flush Valve on a Toilet

For detailed technical references during your project, review the Toilet Flush Valve Replacement Guide alongside manufacturer specs like the Fluidmaster K-507A-008 Flush Valve Repair Kit or the Korky Flush Valve Guide.

Step 1: Shut Off Water and Drain the Tank

Turn the water shutoff valve (angle stop) on the wall behind the toilet clockwise until tight. Hold down the flush handle for 5 to 10 seconds to drain as much water as possible. Remove the tank lid and set it safely on a padded towel.

Step 2: Remove Residual Water

Use a large sponge or shop vacuum to clear out the remaining inch of standing water at the bottom of the tank. The tank must be completely dry so water does not spill onto your bathroom flooring when unbolted.

Step 3: Disconnect Water Supply Line

Place a small bucket under the supply line connection underneath the left side of the tank. Use an adjustable wrench to disconnect the flexible water supply line from the bottom of the fill valve.

Step 4: Unbolt the Tank from the Bowl

Look under the rear sides of the toilet bowl to locate the two (or three) tank mounting nuts. Use a screwdriver inside the tank to hold the bolt head steady while using channel-lock pliers or a socket wrench underneath to remove the nuts. Lift the tank straight up off the bowl and set it upside down or sideways on folded towels.

Step 5: Remove Old Flush Valve and Gasket

Pull off the large, soft rubber tank-to-bowl sponge gasket covering the flush valve tailpiece locknut underneath the tank. Use channel-lock pliers or a spud wrench to unscrew the large plastic locknut counter-clockwise. Once removed, pull the old flush valve assembly out from inside the tank.

Step 6: Clean the Drain Opening

Scrape away any mineral deposits, rust, or decomposed rubber remnants around the tank’s drain hole using a scrub pad or rag. A clean, smooth surface ensures a watertight seal.

Step 7: Install the New Flush Valve Body

Slide the thick rubber cone washer (spud washer) onto the threaded tailpiece of the new flush valve, ensuring the beveled side faces down toward the tank opening. Drop the valve into the tank, positioning the integrated overflow tube so it faces toward the fill valve on the left.

Step 8: Secure the Locknut Without Cracking the Porcelain

From the exterior bottom of the tank, thread the plastic locknut onto the tailpiece. Hand-tighten the nut until snug. Using channel-lock pliers, tighten the nut an additional 1/2 turn.

Crucial Tip: Do not overtighten! Plastic locknuts can crack, and excessive torque can shatter ceramic toilet tanks.

Step 9: Attach Tank-to-Bowl Gasket and Reinstall Tank

Push the new rubber tank-to-bowl sponge gasket over the exposed tailpiece threads and locknut. Carefully lower the tank back onto the lower bowl, aligning the bolt holes. Insert new tank bolts equipped with fresh rubber washers. Tighten the underside nuts evenly, alternating from side to side so the tank stays level. Stop as soon as the tank contacts the bowl’s rubber buffers firmly.

Step 10: Connect Chain and Refill Tube

Reattach the water supply line. Connect the small rubber refill tube from the fill valve into the top of the overflow pipe using the provided clip. Connect the flapper chain to the trip lever arm, leaving roughly 1/2 inch of slack (about 1 to 2 loose chain links).

Fixing the Flush Valve on a Toilet with a One-Piece Design

If your toilet is cast as a single solid piece of ceramic, you cannot unbolt the tank from the bowl to access a locknut underneath.

Replacing a flush valve on a one-piece toilet is performed entirely from inside the tank. Most standard one-piece models (such as many TOTO or American Standard designs) secure the flush valve base using internal stainless steel set screws, brass clamps, or a twist-lock bayonet mechanism.

To fix these models:

1. Shut off the water and sponge out the tank completely.
2. Locate the bracket screws inside the center of the valve base or look for the twist-and-lock notches.
3. Loosen the internal screws using a long screwdriver to release the tension clamp, then twist the valve housing counterclockwise to pull it out.
4. Replace the internal rubber seal ring at the base before locking the new valve body into place.

For full non-removal techniques, see our guide on Replacing Toilet Flush Valve Without Removing Tank.

Troubleshooting Persistent Leaks After Repairing the Flush Valve

If your toilet continues running after installing a brand-new flush valve assembly, check these three common setup errors:

1. Incorrect Overflow Tube Height: The top of the overflow tube must sit at least 1 inch below the tank lever hole, but roughly 1/2 inch above the intended water line. If the tube is cut or set too low, water continuously drains down the tube into the bowl. If set too high, water can overflow through the handle opening. Many modern kits use telescoping overflow tubes (such as the Fluidmaster K-507A-008 Manual Specs) that twist to adjust height easily.
2. Flapper Chain Tension Issues:
   • Too Tight: If the chain has no slack, it holds the flapper slightly propped open, causing a steady trickle.
   • Too Loose: Excessive chain slack causes the chain to drop underneath the flapper as it closes, breaking the seal ring, or prevents the flapper from opening fully when flushed. Check Fluidmaster’s Flapper Troubleshooting Instructions for chain link adjustments.
3. Fill Valve Set Too High: If the water level inside the tank is set higher than the top edge of your new overflow pipe, the fill valve will never shut off. Adjust the float screw on your fill valve clockwise to lower the standing water level to 1/2 inch below the lip of the pipe. Read our steps on How to Fix a Running Toilet for more diagnostics.

When to Call a Professional Plumber

While fixing the flush valve on a toilet is an accessible project for many DIYers, certain situations carry a high risk of property damage or injury:

• Cracked Porcelain: If you discover cracks in the toilet tank base or bowl mounting lugs, stop immediately. Cracked ceramic under pressure can burst without warning, causing flooding or injury.
• Corroded or Seized Hardware: Older brass spud nuts or rusted tank bolts can lock up completely. Trying to force them with excessive plier force can snap the toilet porcelain.
• Leaking Wall Shutoff Valves: If your angle stop shutoff valve drips or fails to turn off the water completely when closed, you need a professional to shut off the main water line and swap out the valve.
• Proprietary Specialty Toilets: Pressure-assist toilets (using pressurized vessels) or non-standard luxury single-piece units often require specialized manufacturer replacement modules and technical assembly.

When in doubt, reaching out to a certified Plumber for Toilet Repair saves time and prevents unexpected home flooding.

Frequently Asked Questions About Toilet Flush Valve Repair

How long does a toilet flush valve last?

Standard toilet flush valves last between 4 to 7 years. In regions with hard water or high mineral content, rubber gaskets and plastic valve seats can degrade in as little as 3 years. Additionally, dropping chemical chlorine or bleach cleaning tablets directly into the tank rapidly breaks down internal rubber seals, voiding manufacturer warranties.

Can you replace a toilet flush valve without removing the tank?

On a standard two-piece toilet, you cannot replace the full flush valve structure without unbolting the tank, because the main retaining locknut is located on the exterior bottom of the tank. However, if the lower valve seat is undamaged, you can use no-tank-removal repair kits (like the Fluidmaster 555C seat overlay kit) that stick a new seat ring directly over the existing base. One-piece toilets can also be serviced entirely from inside the tank.

How much water does a running toilet waste?

A running toilet caused by a deteriorated flush valve or flapper can waste between 30 and 200 gallons of water per day. Over a single month, an unaddressed toilet leak can add hundreds of dollars to your municipal utility bill and waste thousands of gallons of clean drinking water.

Conclusion

Taking on DIY toilet maintenance is one of the fastest ways to cut household water waste and keep your bathroom fixtures running smoothly. By taking accurate measurements, inspecting your valve seat, and exercising patience when tightening mounting bolts, fixing the flush valve on a toilet is a manageable weekend repair.

If you hit a snag with rusted bolts, specialty one-piece toilet valves, or persistent leaks in Rancho Cordova, Sacramento, or anywhere in Northern California, our team at Go Pro Plumbing is ready to help. We offer same-day service and expert repairs to ensure your plumbing stays leak-free. Contact us today to explore our complete Toilet Plumbing Services!
