The Hot Truth: Unpacking Electric Water Heater Recirculation Pumps
By Brian on November 5, 2025
Why Waiting for Hot Water Is Costing You More Than Time
If you’re like most homeowners in Northern California, you probably wait two minutes or more for hot water, watching usable water go down the drain. That wait isn’t just frustrating—it’s expensive. The average household wastes 10,000 to 15,000 gallons of water annually just waiting for it to heat up. You pay for that water and the energy to heat it, a significant waste, especially in drought-prone areas.

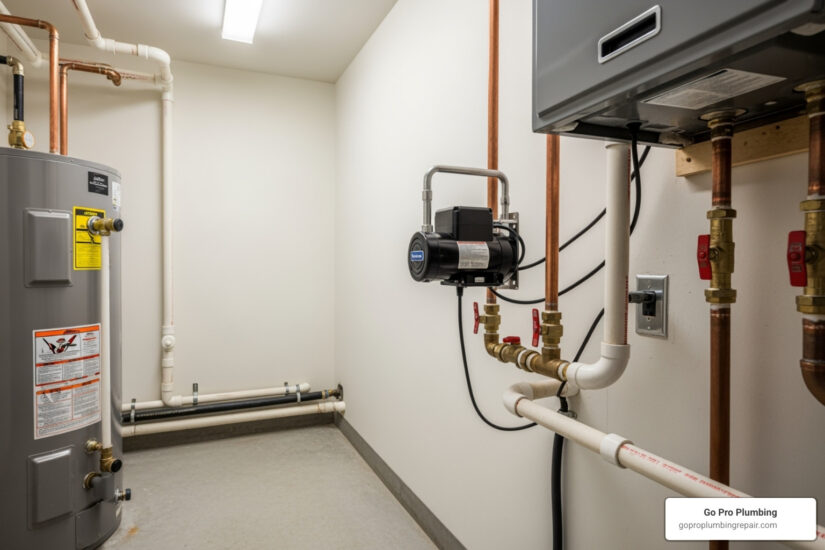

An electric water heater recirculation pump solves this problem. This device circulates hot water through your home’s plumbing, so it’s ready the moment you turn on a faucet. It eliminates the wait and the waste.
How It Works:
- Installs near your water heater or under the farthest sink.
- Circulates cooled water from pipes back to the heater.
- Uses either a dedicated return line or your existing cold water pipe.
- Activates via a timer, temperature sensor, or push-button.
- Delivers hot water in seconds, not minutes.
Modern systems use smart controls like timers or on-demand activation to maximize efficiency. Unlike older pumps that ran continuously and wasted energy, today’s demand-controlled systems only operate when needed, saving both water and energy. Understanding how these pumps work can help you upgrade your home’s comfort and efficiency.
What Is an Electric Water Heater Recirculation Pump and How Does It Work?
An electric water heater recirculation pump provides the luxury of instant hot water. In traditional plumbing, water left in the pipes cools down, and you have to flush it out before hot water from the heater arrives. This is a wasteful cycle.
A recirculation pump breaks this cycle by gently circulating the cooled water back to your water heater for reheating, creating a loop where hot water is always on standby.
Systems work in one of two ways:
- Dedicated Return Line: Common in new construction, this setup uses a separate pipe to send cooled water directly back to the heater. It’s the most efficient configuration.
- Retrofit Systems: For homes without a dedicated line, these systems use the existing cold water line as a return path. A special crossover valve installed under the farthest sink allows cooled hot water to flow back to the heater via the cold water line. This is a clever solution that avoids tearing into walls.
Key components like a check valve (to prevent backflow) and a sensor valve (to monitor temperature) ensure the system is reliable. For more details, see How a Hot Water Recirculating System Works. Industry leaders like Grundfos also offer great resources on Residential hot water recirculation.
Understanding System Configurations
In new construction, installing a dedicated return loop is the most efficient method. A plumber runs an extra pipe from the furthest fixture back to the water heater, creating a clean circuit. Our Hot Water Recirculating Pump Diagram Guide illustrates these layouts.
For existing plumbing, under-sink retrofit kits are ideal. They use a crossover valve to create a bridge between hot and cold lines, allowing cooled water to return to the heater without expensive renovations. A minor trade-off is that the cold water tap at that sink might run slightly warm for a few seconds during recirculation, which most homeowners find unnoticeable.
Compatibility with Water Heaters
A common question is whether a recirculation pump will work with a specific water heater. The answer is yes, but the details matter.
-
Tank-Style Water Heaters: These are a natural fit. The pump simply sends cooled water back to the tank to be reheated with the rest of the reservoir.
-
Tankless Water Heaters: These require special consideration. A continuously running pump can cause a tankless unit to cycle on and off constantly, leading to premature wear, higher energy bills, and a potentially voided warranty. The solution is to use an on-demand activation system (e.g., push-button or motion sensor). This ensures the pump only runs when you need hot water, allowing the tankless heater to function as designed. Learn more in our guide on Hot Water Recirculation for Tankless Systems.
Matching the pump to your heater is key to getting the convenience you want without the headaches.
The Core Benefits: More Than Just Instant Hot Water
While instant hot water is a great luxury, an electric water heater recirculation pump offers substantial benefits, including water conservation, energy efficiency, and cost savings. It’s a smart investment in your home’s efficiency and comfort.
Quantifying the Savings
The numbers are compelling. These systems can make a real difference in your monthly bills.
-
Water Conservation: The typical household wastes 10,000 to 15,000 gallons of water annually waiting for hot water. A recirculation pump can save up to 12,000 gallons per year, which is reflected in lower water bills.
-
Energy Efficiency: Modern, demand-controlled systems are highly efficient. By circulating water only when needed, your water heater works less, reducing energy consumption. Some models can cut home energy use by up to 50% compared to traditional setups, leading to lower heating bills. Over time, these savings often cover the system’s initial cost.
For more on maximizing savings, see Water Conservation Environmental Benefits.
Environmental and Community Impact
Installing a recirculation pump has a broader positive effect, especially in Northern California, where water resources are precious. When many homes reduce water waste, it lessens the demand on municipal systems and helps conserve water during dry seasons.
Efficient pumps also consume less energy, reducing your home’s carbon footprint and greenhouse gas emissions. It’s a win-win: you gain comfort while helping the environment. Every time you get instant hot water without waste, you’re making a choice that benefits your household, community, and the planet. Explore more ideas in our Water Conservation Strategies Guide.
Choosing Your System: Types of Recirculation Pump Controls
The control mechanism on an electric water heater recirculation pump is critical for efficiency and convenience. It determines how the pump operates, so it’s important to choose one that fits your lifestyle. The three main types are timer-controlled, temperature-controlled, and demand-controlled.
Here’s a comparison of the main types of recirculation pump controls:
| Control Type | Efficiency | Convenience | Typical Use Case |
|---|---|---|---|
| Timer-Controlled | Moderate – runs on schedule regardless of need | High – set it and forget it | Households with predictable routines |
| Temperature-Controlled (Aquastat) | Lower – may run frequently to maintain temperature | Moderate – requires minimal input | Homes where instant hot water is needed unpredictably |
| Demand-Controlled | Highest – only runs when activated | Highest – complete control over operation | Energy-conscious households, tankless water heaters |
Timer-Controlled Systems
These pumps are a “set it and forget it” option, operating on a programmable schedule you set for peak usage hours (e.g., mornings and evenings). They work well for households with predictable routines. The trade-off is that the pump runs during its scheduled time whether you’re home or not, which can waste some energy. Still, it’s a good balance of convenience and efficiency for many. Learn more about Are Hot Water Recirculation Systems Efficient?
Temperature-Controlled (Aquastat) Systems
Also called aquastat systems, these pumps use a sensor to monitor water temperature in the pipes. When the temperature drops below a set point (usually 95°F), the pump activates to circulate hot water. While this ensures hot water is always ready, these systems can cycle frequently, especially in homes with long or poorly insulated pipes. This frequent operation can lead to higher energy consumption from standby heat loss, making it a less efficient option.
Demand-Controlled: The Smartest Electric Water Heater Recirculation Pump
For top efficiency, demand-controlled systems are the clear winner. They circulate hot water only when you activate them via a push-button, motion sensor, or smart home command. You get hot water exactly when you want it, with no wasted energy from unnecessary circulation. This makes them the perfect choice for tankless water heaters and for any energy-conscious homeowner. The only minor consideration is remembering to activate the system a minute before you need hot water, a small step that yields significant energy savings.
Introduction
Waiting for hot water; Water waste; Energy waste; Instant hot water solution; Convenience and savings; [INFOGRAPHIC] explaining the wait for hot water vs. instant hot water with a recirculation pump
What Is an Electric Water Heater Recirculation Pump and How Does It Work?
Imagine turning on your shower and getting hot water right away. An electric water heater recirculation pump makes that happen by moving cooled water in your hot lines back to the heater so fresh hot water is always close to fixtures. In standard plumbing, that cooled water just sits in pipes and gets dumped down the drain the next time you open the tap.
There are two common approaches:
- Dedicated return line (most efficient, typically in new builds)
- Retrofit systems that use the existing cold line as a return via a crossover valve
Core parts include the pump, a check valve to stop backflow, and a temperature/sensor valve for control. For a quick explainer, see How a Hot Water Recirculating System Works and manufacturer guidance on Residential hot water recirculation.
Understanding System Configurations
- New construction: Install a dedicated return loop from the furthest fixture back to the heater for the best performance. See layouts in our Hot Water Recirculating Pump Diagram Guide.
- Existing homes: Use an under-sink retrofit kit with a crossover valve at the farthest fixture. During recirculation, the cold tap at that sink may feel slightly warm for a few seconds—usually barely noticeable.
Compatibility with Water Heaters
- Tank-style heaters: A natural fit. The pump returns cooled water to the tank to be reheated.
- Tankless heaters: Avoid continuous circulation to prevent short cycling and possible warranty issues. Use an on-demand setup (push-button, motion sensor, or smart trigger) so the pump only runs when needed. Details: Hot Water Recirculation for Tankless Systems.
The Core Benefits: More Than Just Instant Hot Water
Beyond comfort, an electric water heater recirculation pump can cut water waste, trim energy use, and lower utility bills—especially valuable in drought-prone Northern California.
Quantifying the Savings
- Water conservation: Typical homes waste 10,000–15,000 gallons per year waiting for hot water. A well-set system can save up to 12,000 gallons annually—directly reducing your water bill.
- Energy efficiency: Modern demand-controlled pumps circulate only when needed, reducing standby losses and hot water wait-time purges. Many homeowners see meaningful energy reductions and a clear payback. Learn more: Water Conservation Environmental Benefits.
Environmental and Community Impact
- Conserve precious resources in drought-prone regions
- Ease demand on municipal water systems and aging infrastructure
- Lower your home’s carbon footprint by cutting unnecessary energy use
Explore more tips in our Water Conservation Strategies Guide.
Choosing Your System: Types of Recirculation Pump Controls
Pick a control that matches how your household uses hot water. The right choice boosts efficiency without sacrificing convenience.
| Control Type | Efficiency | Convenience | Typical Use Case |
|---|---|---|---|
| Timer-Controlled | Moderate—runs on schedule whether needed or not | High for predictable routines | Families with consistent daily schedules |
| Temperature-Controlled (Aquastat) | Lower—can cycle frequently to maintain temperature | Moderate—always ready but may waste energy | Homes where instant hot water is needed unpredictably throughout the day |
| Demand-Controlled | Highest—only runs when activated | Highest—hot water on demand with minimal waste | Energy-conscious households and those with variable schedules |
Timer-Controlled Systems
Program the pump for peak times (mornings/evenings) and enjoy set-and-forget convenience. It may run even when no one needs hot water during scheduled windows, so it is less efficient than on-demand options. Good for consistent routines. More details: Are Hot Water Recirculation Systems Efficient?
Temperature-Controlled (Aquastat) Systems
These activate when pipe temperature falls below a set point, keeping hot water available at all hours. The trade-off is more frequent cycling and higher standby heat loss, so they are typically less efficient for most homes.
Demand-Controlled: The Smartest Electric Water Heater Recirculation Pump
Activate via push-button, motion sensor, or smart-home command so the pump runs only when needed—typically for a minute or two per use. This delivers the highest efficiency and is ideal for tankless systems and energy-conscious households.
Installation, Cost, and Maintenance for Your Electric Water Heater Recirculation Pump
Once you’ve decided on an electric water heater recirculation pump, the next steps are installation, understanding the cost, and learning how to maintain it. While it’s a technical job best left to professionals, knowing the process is helpful.
Installation Requirements for an Electric Water Heater Recirculation Pump
Key factors for installation include:
- Pump Location: Typically installed near the water heater or, for retrofit kits, under the sink farthest from the heater.
- Power Source: Most pumps require a standard 120-volt outlet. An electrician may be needed if one isn’t available.
- Plumbing Connections: This involves connecting the pump into the hot water line or installing a crossover valve under a sink.
- Safety: Always shut off the water and power to the water heater before starting. If you’re not comfortable with plumbing and electrical work, call a professional.
For a detailed guide, see How to Install Hot Water Recirculating System.
Typical Costs and ROI
- Equipment Cost: Pumps range from $150-$300 for basic timer models to $300-$600+ for smart, demand-controlled systems.
- Installation Cost: Professional installation typically costs $300-$900, depending on your home’s plumbing and any electrical work needed.
Total investment is usually in the $500-$1500 range. With annual water and energy savings of $150-$300, many homeowners see a payback period of 3-5 years. After that, it’s pure savings. For a full financial breakdown, visit our Hot Water Recirculation System Cost page.
Maintenance and Common Troubleshooting
Modern recirculation pumps are very low-maintenance. Here’s a simple annual checklist:
- Inspect for leaks around connections.
- Clean any inlet screens to remove sediment buildup.
If you encounter issues:
- Pump running continuously: This could be a faulty timer or sensor. Check your control settings first.
- Pump won’t start: Verify it has power, check the timer settings, and look for tripped circuit breakers.
Our Hot Water Recirculation System Problems guide offers more detailed solutions. For any complex issues, the Go Pro Plumbing team is here to help.
Frequently Asked Questions about Recirculation Pumps
Here are answers to the most common questions we hear from homeowners about an electric water heater recirculation pump.
Can I use a recirculation pump with my tankless water heater?
Yes, but you must use the right type. A continuously circulating pump can cause a tankless heater to cycle on and off constantly, leading to premature wear, higher energy bills, and a voided warranty. The correct solution is a demand-controlled recirculation pump (activated by a button or sensor), which works perfectly with tankless units by running only when you need hot water.
How much money will I actually save?
Savings vary based on your water usage, utility rates, and home layout. By eliminating the waste of 10,000 to 15,000 gallons of water annually, you will see a noticeable drop in your water bill. Combined with energy savings, many homeowners find the system pays for itself within a few years. The daily convenience of never waiting for hot water is another priceless benefit.
Are electric water heater recirculation pumps noisy?
Modern recirculation pumps are designed to be whisper-quiet. You might hear a faint hum when the pump is active, similar to a refrigerator, but it’s generally unnoticeable. Since pumps are installed in utility areas or under sinks, any sound typically blends into the background. Noise complaints are virtually non-existent for the systems we install.
Conclusion
Installing an electric water heater recirculation pump is a smart investment in your home’s comfort, efficiency, and sustainability. You gain instant hot water, save thousands of gallons of water annually, reduce energy consumption, and lower your utility bills.
For homeowners in Northern California, where water conservation is essential, these systems are a practical and impactful upgrade. Modern demand-controlled pumps offer all the convenience without the energy penalties of older models, making them a forward-thinking choice.
