Why Understanding Recirculating Hot Water System Diagrams Matters

A recirculating hot water system diagram is a visual shortcut that shows you exactly how instant hot water is delivered to every tap. It highlights the major components and how they connect, making it easier to plan a new build, troubleshoot an existing system, or talk to a plumber without feeling lost.

Main System Types
– Dedicated Loop an extra return pipe brings cooled water back to the heater.
– Integrated Loop a crossover valve turns the cold line into the return path.

Essential Components
– Small 47watt recirculation pump
– Check valve (stops backflow)
– Timer or thermostat controls
– Expansion tank for pressure changes
– Insulated supply and return lines

Control Options
– Temperature sensor (aquastat)
– Programmable timer
– Occupancy or smarthome sensors

Waiting for hot water wastes both time and resources. Estimates show U.S. households collectively dump up to 1.3 trillion gallons down the drain every year while taps warm upenough water to fill about two million Olympic pools. Treating and pumping that wasted water burns 8001,600 kWh of electricity per home each year.

A recirculation loop keeps hot water moving so its ready on demand, slashing that waste and giving you hotelstyle comfort at home.

Quick reference guides:
– Hot water recirculation system design
– How does a hot water recirculating system work
– Hot water recirculation system problems

Why Waiting for Hot Water Wastes More Than Time

Every time you turn on a faucet and let it run, youre flushing cooled water that has been sitting in the pipes. Multiply that by showers, handwashing, and kitchen use, and the numbers get big fast. Many cities now offer rebates because recirculation loops reduce both water waste and the energy required to process it.

What Is a Recirculating Hot Water System?

Picture your home’s plumbing like a racetrack where hot water never stops moving. That’s essentially what a recirculating hot water system does – it creates a closed-loop that keeps hot water flowing from your water heater to your faucets and back again, so you never have to wait for hot water.

Here’s how the magic happens: A small pump (usually about 47 watts) pushes hot water through your supply lines out to the farthest fixtures. But instead of letting that water just sit there getting cold, the system brings it back to the water heater through either a dedicated return line or by cleverly using your existing cold water line as the return path.

The beauty is in the controls. Your system doesn’t run like a hamster on a wheel 24/7. Instead, it uses smart controls like a thermostat (aquastat), timer, or occupancy sensor to know when to kick in. When the water temperature in your pipes drops below your set point – typically somewhere between 77°F and 104°F – the system wakes up and starts circulating until everything’s nice and toasty again.

A check valve plays the role of traffic cop, making sure hot water doesn’t accidentally flow backward into your cold water lines. Nobody wants lukewarm water when they’re trying to get a cold drink!

This clever setup works beautifully with both traditional tank water heaters and modern tankless systems, though tankless installations sometimes need a few extra components to play nice together.

For the complete story on how these systems tick, take a look at How Does a Hot Water Recirculating System Work?

Key Benefits vs. Drawbacks

Let’s be honest about what you’re getting into – every home improvement has its sunny side and its shadows.

On the bright side, you’ll love the water conservation. No more watching perfectly good water swirl down the drain while you wait. You’ll also get that luxury hotel feeling with instant hot water at every faucet. The time savings alone can make your morning routine so much smoother.

Many cities recognize these systems as environmental winners and offer rebates ranging from $100 to $200 to help with installation costs.

But here’s where we need to talk turkey. There’s definitely an energy penalty because continuously circulating hot water means heat loss through your pipes, even with good insulation. Your typical pump will draw about 47 watts and consume roughly 138 kilowatt-hours per year – not huge, but not free either.

The upfront installation cost can range from a few hundred to several thousand dollars depending on your home’s layout. And like any mechanical system, pumps, valves, and sensors will need some TLC over the years.

Poor pipe insulation can actually heat up your living spaces in summer, making your air conditioner work harder. But with proper insulation and smart controls, you can keep these effects minimal.

For deeper insights into system efficiency and industry perspectives, check out this Stemming the Flow – Industry article.

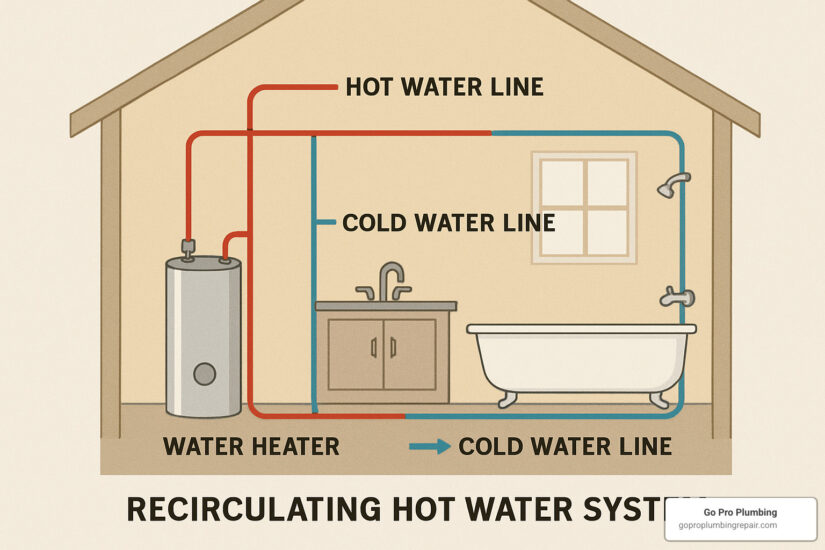

Recirculating Hot Water System Diagram

When you look at a recirculating hot water system diagram, you’re seeing the roadmap for how hot water travels through your home. Think of it like a racetrack where hot water starts at your water heater, speeds through your supply lines to reach every faucet, then returns home to get reheated and do it all over again.

The magic happens when all the pieces work together. Your supply lines carry fresh hot water from the heater to every fixture in your home. Meanwhile, return lines bring the cooled water back to start the journey again. The recirculation pump acts like the engine that keeps everything moving, creating just enough pressure to push water through the entire loop.

A check valve works like a one-way street sign, making sure water flows in the right direction and doesn’t backtrack where it shouldn’t go. The balancing valve lets you fine-tune how much water flows to different areas of your home – kind of like adjusting the dampers in your heating system.

Don’t forget about the expansion tank, which gives heated water room to expand without building up dangerous pressure. And that insulation wrapped around your pipes? It’s like a winter coat that keeps your hot water hot and prevents energy waste.

The layout depends on your home’s size and age. Single-story homes usually need just one circulation zone, while two-story homes often work better with separate zones for each floor. This keeps water temperatures balanced no matter where you are in the house.

Dedicated Loop “Return Line” Recirculating Hot Water System Diagram

The dedicated loop recirculating hot water system diagram shows the gold standard setup – especially if you’re building new or doing a major renovation. This system runs a separate return pipe alongside your hot water supply lines, creating a true highway loop for your hot water.

Picture this: the return line starts at your farthest fixture (usually a bathroom at the opposite end of the house from your water heater) and runs all the way back to connect directly to your water heater. This creates a perfect circle where hot water never stops moving.

This setup delivers the most efficient circulation because water doesn’t have to fight its way through mixed-use pipes. It works especially well in larger homes with six or more bathrooms where you need consistent performance everywhere. You’ll get the same hot water temperature whether you’re in the master bathroom or the powder room by the front door.

For installation, you’ll need dedicated return piping throughout your home, plus a connection point at your water heater – usually a side port or a tee fitting. The pipes are typically sized with 3/4-inch supply lines and 1/2-inch return lines, and everything gets wrapped in insulation to keep the heat where it belongs.

Integrated “Crossover Valve” Recirculating Hot Water System Diagram

The integrated recirculating hot water system diagram is the clever solution for existing homes where running new pipes would mean tearing up walls and floors. Instead of adding return pipes, this system uses a special crossover valve that turns your existing cold water line into a return path.

Here’s how this smart system works: A crossover valve gets installed at your farthest fixture with a temperature sensor that opens when water drops below about 95°F. When the valve senses cool water, it opens up and lets hot water flow through into the cold water line, which then carries it back to the water heater.

The pump pushes hot water through your supply lines just like the dedicated system. But when water cools down, that crossover valve becomes a bridge between your hot and cold lines. The cold line temporarily becomes a return highway, carrying the cooled water back home for reheating. Once hot water reaches the fixture, the valve closes and everything returns to normal.

This retrofit approach means no new piping, which translates to lower installation costs and no construction mess. It works with your existing plumbing layout, and you can install multiple valves if your home has several plumbing branches.

The trade-offs are worth considering though. Very large homes might not get the same performance as a dedicated system, and you might notice slight temperature mixing in your cold lines. Balancing multiple zones can also be trickier, but for most homes, this system delivers the instant hot water comfort you’re looking for without breaking the bank.

Components, Types & Sizing Essentials

Choosing the right parts is the difference between a system that delivers years of hassle-free service and one that constantly needs attention.

The recirculation pump is the heart of the loop. Most homes only need a compact, 47-watt unit able to move 0.5–2 GPM depending on fixture count (roughly 1 GPM per 20 fixture units).

Check valves stop unwanted backflow. A spring-loaded style seals faster and more reliably than a swing valve, so its our go-to choice for Northern California installations.

Smart controls make the system efficient:
– Timer – runs the pump only during peak use, saving up to 70 % on electricity.
– Aquastat – turns the pump on when pipe temperature drops below set-point.
– Occupancy / smart sensors – great for guest baths or sporadic use areas.

An expansion tank (installed on the cold inlet) absorbs pressure swings, and automatic air vents keep the loop from air-locking.

Choosing the Right Pump & Controls

A 47-watt pump running 24/7 costs about $15–$20 per year in power, but timers or sensors can cut that in half. Match controls to your familys routine for the best balance of comfort and savings.

For in-depth design help, visit our guide on Hot Water Recirculation System Design.

Installation Overview Step-by-Step (Snapshot)

1. Shut off and drain water heater lines.
2. Mount the pump with the shaft horizontal, arrow pointing away from the heater.
3. Add the dedicated return or install the far-fixture crossover valve.
4. Insulate all hot lines (minimum 1/2-inch).
5. Install expansion tank, check valve, and air vent.
6. Purge air, wire controls, set timer/aquastat, and test each fixture.

For full details, see How to Install Hot Water Recirculating System.

Troubleshooting, Maintenance & Optimization

Like any plumbing system, a recirculation loop needs occasional attention. The good news? Most issues are easy to spot and fix before they become headaches.

Common issues and quick fixes
– Sediment buildup – flush the system once a year to keep crossover valves and pump impellers clear.
– Air binding – automatic vents at high points prevent circulation stalls.
– Pump wear – unusual noises or lost flow after 5-8 years usually means its time for a replacement.
– Valve leaks – check crossover and check valves during your annual inspection.

Tankless + Recirculation tip: low loop flow can fail to trigger some tankless heaters. A small electric mini-tank in the loop solves this by providing the minimum activation flow and a bit of stored hot water.

Control Tweaks for Peak Efficiency

1. Program timers for morning/evening use to save up to 70 % electricity.
2. Lower set-point to 95-100 °F to reduce standby losses while still delivering comfortable water.
3. Use vacation mode or simply unplug the pump when youre away.
4. Integrate with smart home systems for automatic scheduling.

For detailed troubleshooting help, see Hot Water Recirculation System Problems.

Frequently Asked Questions about Recirculating Loops

When homeowners start exploring recirculating hot water system diagrams, they naturally have questions about sizing, compatibility, and costs. Here are the most common questions we hear at Go Pro Plumbing, along with practical answers based on our experience installing these systems throughout Northern California.

How do I size a recirculation pump for my home?

Getting the pump size right makes the difference between a system that works perfectly and one that struggles to deliver hot water efficiently. The key is matching your pump’s capacity to your home’s actual demand.

The industry standard formula is 1 gallon per minute for every 20 fixture units. But what does that mean for your home? A typical bathroom has about 4-6 fixture units (toilet, sink, shower/tub), while a kitchen adds another 2-3 units.

For most homes, this breaks down to:
– Small homes (2-3 bathrooms): 0.5 to 1 GPM pump handles the circulation easily
– Medium homes (4-6 bathrooms): 1 to 1.5 GPM pump provides reliable performance
– Large homes (6+ bathrooms): 1.5 to 2 GPM pump ensures adequate flow to all fixtures

Your pipe size also affects pump selection. Homes with 3/4″ or 1″ supply risers typically need about 0.5 GPM for proper circulation, while larger homes with 2″ or bigger risers require closer to 2 GPM to move water effectively through the entire loop.

The good news? Most residential pumps draw only about 47 watts – less electricity than a standard light bulb.

Will a recirculating loop work with a tankless heater?

Absolutely, though tankless systems need a bit of extra attention to work smoothly with recirculation loops. The challenge is that tankless activation requires minimum flow rates that recirculation systems don’t always provide.

Most tankless water heaters need at least 0.5 GPM flowing through them to fire up. But recirculation loops often operate at lower flow rates, which means your tankless heater might not recognize there’s demand for hot water.

The solution is adding a small electric mini-tank in the recirculation loop. This buffer tank ensures your tankless heater activates reliably and provides a small reserve of hot water for immediate delivery. Set the mini-tank temperature to 105-120°F, just below your main tankless setting, to avoid thermal expansion problems.

Another benefit of the mini-tank approach is smoother operation during low-demand periods. Instead of your tankless heater cycling on and off repeatedly, the mini-tank handles small recirculation demands while your main heater focuses on high-demand situations like showers.

For complete details on making tankless and recirculation systems work together, check out our guide on Hot Water Recirculation for Tankless System.

Are there rebates for installing these systems?

Yes! Many cities and utilities recognize recirculating hot water systems as valuable water conservation tools and offer rebates to encourage installation.

Here in the West, we see some great rebate programs. Santa Fe and Albuquerque, New Mexico both offer $100 rebates for qualifying systems. Scottsdale, Arizona goes even higher with rebates up to $200. Various California utilities provide $50 to $150 rebates, though programs vary by region.

The key to qualifying for rebates is usually installing energy-efficient features like timer controls or low-power pumps. Most rebate programs want to see that you’re not just saving water, but also minimizing the energy impact of continuous circulation.

To find rebates in your area, start with your local water utility – they often have the most generous programs since they directly benefit from reduced water waste. Your city or county government may also offer rebates as part of broader water conservation initiatives.

Don’t forget to apply for rebates before installation in most cases. Many programs require pre-approval or specific documentation during the installation process.

Conclusion & Next Steps

When you really understand a recirculating hot water system diagram, you’re looking at more than just pipes and pumps – you’re seeing the blueprint for changing your daily routine. No more shivering in the shower waiting for warm water. No more guilt watching precious water swirl down the drain. Just instant comfort whenever you need it.

The beauty of these systems lies in their simplicity. Whether you go with a dedicated loop system for that dream home renovation or choose the crossover valve approach to upgrade your current setup, you’re making a smart investment in both comfort and conservation. The average family saves thousands of gallons annually while gaining the luxury of instant hot water at every faucet.

Here’s what makes the difference: proper installation and smart controls. A well-designed system with timer controls can deliver all the comfort benefits while keeping energy costs surprisingly low. We’re talking about $15-20 per year in electricity costs for most homes – less than what many families spend on coffee in a week.

At Go Pro Plumbing, we’ve seen how these systems change our customers’ lives. That morning rush becomes smoother when hot water is ready instantly. Evening routines feel more relaxing when you’re not waiting and wasting water. It’s one of those upgrades that pays for itself in convenience long before you see the savings on your water bill.

The investment makes sense from every angle. You’ll conserve water, reduce waste, and gain daily convenience. Many Northern California cities recognize this value too, offering rebates that can offset a significant portion of your installation costs.

Our same-day service commitment means you won’t wait weeks to start enjoying these benefits. Our experienced technicians understand the nuances of different home layouts and can recommend the perfect system configuration for your specific needs. From Rancho Cordova to Sacramento and throughout Northern California, we’ve helped hundreds of families make this smart upgrade.

Ready to stop waiting for hot water? The consultation process is straightforward – we’ll assess your current plumbing layout, discuss your usage patterns, and design a system that delivers maximum comfort with optimal efficiency. Every installation comes with our commitment to outstanding customer service and the peace of mind that comes from working with true professionals.
