Mastering Your Moen Kitchen Faucet Installation

By Brian on August 5, 2026

Tools and Water Shutoff Preparation

Before you begin your moen sink faucet install, gathering the right tools and completing proper preparation will save you multiple trips to the hardware store. It typically takes a plumber 1 to 2 hours to swap out a kitchen faucet, and having everything ready keeps your installation on that same fast track.

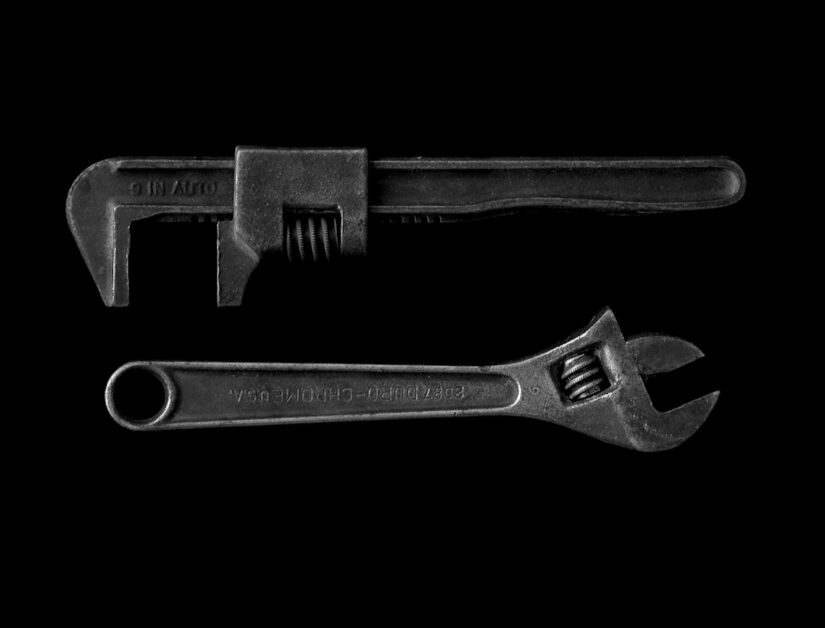

Here is the essential tool checklist:

• Basin wrench: Essential for reaching into narrow under-sink spaces to loosen stubborn nuts.
• Adjustable wrench: Used for tightening supply line compression connections.
• Flashlight or headlamp: Essential for illuminating dark cabinet interiors.
• Safety glasses & work gloves: Protect your eyes and hands from falling rust flakes and sharp metal edges.
• Bucket and rags: Needed to catch residual water left inside supply lines.
• Penetrating oil (e.g., WD-40): Softens rust and corrosion on older metal fasteners.

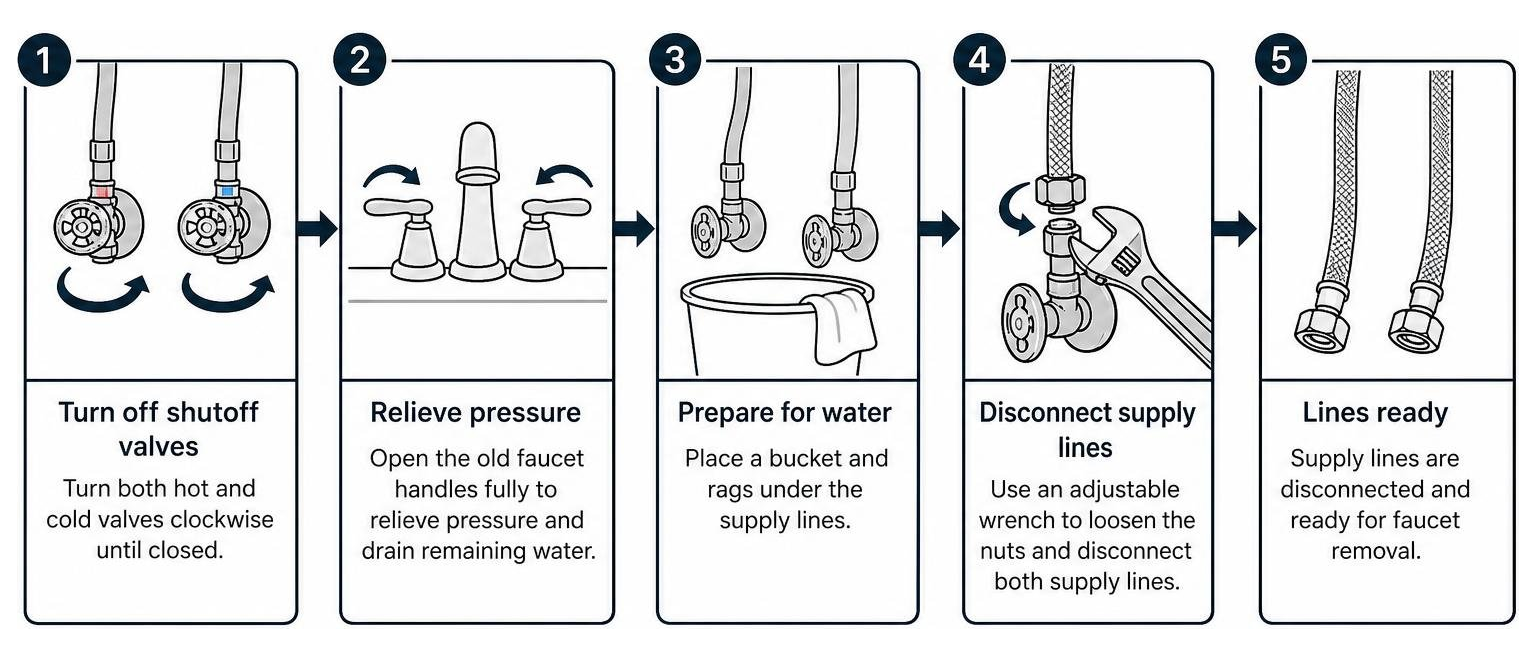

Shutting Off Water and Relieving Line Pressure

Locate the shutoff valves (stop valves) directly under the sink. Turn both the hot and cold valve handles clockwise until completely closed. If your sink lacks individual shutoff valves, turn off the main water shutoff valve. Main valves are usually located in the basement, garage, or utility room within 5 feet of where the main water line enters your home.

Once turned off, open the old faucet handles completely to relieve remaining system pressure and drain lingering water. Place your bucket and rags underneath the supply lines, then use an adjustable wrench to disconnect the flexible lines from the shutoff valves.

If the old mounting nut under the sink is rusted or frozen, squirt penetrating oil on the threads and wait five minutes. For stubborn plastic mounting nuts, heating them briefly with a hairdryer can soften the material, making removal significantly easier. After removing the old fixture, thoroughly clean the top surface of the sink around the mounting holes using a putty knife and household cleaner. Clearing old plumber’s putty, caulk, and mineral scale guarantees a level, watertight seal for your new fixture. For more details on preparation, review our Sink Faucet Replacement Guide.

Step-by-Step Moen Sink Faucet Install Guide

Now that the mounting deck is clean, you are ready to position the new hardware. Moen kitchen faucets are engineered with built-in compression fittings on their flexible braided supply lines, eliminating the need for Teflon tape or pipe dope.

Watch this helpful Moen Guided Installation Video alongside our step-by-step instructions below. If you need a comprehensive overview of kitchen fixtures, check out our guide on Installing Faucet in Kitchen Sink.

Mounting Components during a Moen Sink Faucet Install

1. Determine Deck Configuration: If installing on a single-hole sink, place the single-hole deck gasket directly onto the base of the faucet body. For a three-hole sink setup, place the wide escutcheon (deck plate) and its matching gasket over the three sink holes, then feed the faucet lines through the center hole.
2. Set the Faucet Body: Lower the faucet lines and threaded shank through the sink deck opening until the fixture sits flush and straight.
3. Under-Sink Bracket Assembly: From beneath the cabinet, slide the plastic support bracket and heavy metal mounting washer over the threaded shank.
4. Tighten the Mounting Nut: Moen pulldown faucets come with a specialized cylindrical mounting nut installation tool. Thread the mounting nut onto the shank by hand, then slide the Moen tool over the nut. Insert a screwdriver through the cross-holes at the base of the tool to gain extra mechanical leverage, tightening the nut securely against the cabinet underside. Refer to the official Moen Pulldown Faucet Installation Manual for model-specific bracket diagrams.

Connecting Supply Lines, Reflex Hose, and Line Flushing

1. Connect Hot and Cold Water Lines: Thread the hot (tagged) and cold supply lines onto your shutoff valves. Tighten them hand-tight plus an additional 1/8 to 1/4 turn with an adjustable wrench. Do not overtighten.
2. Attach the Reflex Pulldown Hose: Push the end of the flexible pulldown hose firmly into the Quick Connect Adaptor located at the bottom of the faucet shank. Push until you hear an audible click, then perform a downward tug test to verify the connection is locked.
3. Position the Hose Weight: Locate the weight locator mark printed on the pulldown hose loop. Snap the counterweight onto the hose directly above the start of the curvature on the mark side.
4. Maintain the 8×8 Clear Zone: Ensure an 8-inch by 8-inch (20 cm x 20 cm) clear area beneath the sink around the hose path. Keep cleaning bottles, pipes, and buckets away so the weight travels without snagging.
5. Flush the Supply Lines: Do not attach the spray head yet! Place the unattached end of the pulldown hose inside your bucket. Turn the under-sink shutoff valves fully back on and run both hot and cold water for 15 seconds. This flushes out manufacturing debris and solder dust before it can clog the spray head filter screen.
6. Attach Spray Head: Thread the spray head onto the end of the pulldown hose by hand, then gently snug it with a wrench. For additional details on fittings, see The Ultimate Guide to Kitchen Sink Faucet Connections and Hardware.

Sinks, Maintenance, and Troubleshooting

When replacing a faucet, many homeowners replace their sink at the same time. Whether installing a new sink or maintaining your existing fixture, proper technique ensures long-term reliability.

Drop-In and Undermount Sink Integration

If you are replacing your sink alongside your faucet, always pre-attach your faucet, drain assembly, and strainers to the sink before lowering the sink into the countertop cutout. Accessing mounting nuts is much easier when working out in the open.

When installing a drop-in stainless steel sink:

• Place the sink upside down on the counter to trace its outer outline, then draw an inner cut line exactly 5/16 inch inside that mark.
• Apply a continuous 1/8 to 1/4 inch bead of silicone caulk along the top edge of the cutout.
• Lower the sink, press firmly, and secure the U-channel mounting rails underneath using the clip torque sequence (tightening opposite corners in a numerical pattern to prevent warping).

For undermount sinks, clean the countertop underside with denatured alcohol, apply silicone sealant, and secure mounting brackets into pre-drilled holes set 1-1/8 inches back from the cutout rim. Consult the official Moen Stainless Steel Sink Manual for full mounting specifications.

Post-Installation Leak Troubleshooting and Care

If you spot drips under the cabinet after turning the water back on:

• Leaking compression joints: Turn off the water, back off the fitting slightly, check that the line sits straight, and retighten 1/8 turn.
• Threading leaks on non-compression fittings: Unscrew the joint, wrap 2 to 3 turns of Teflon tape clockwise around male pipe threads, and reconnect. Read our guide on How to Fix a Faucet Line Leaking Without Losing Your Sanity for step-by-step assistance.

To maintain Moen stainless steel sinks and Spot Resist finishes:

• Clean in the direction of the metal grain lines using warm water and mild liquid soap.
• Never use steel wool pads or bleach; steel wool leaves iron particles that cause rust, while bleach corrodes stainless steel over time.
• Hard water scale treatment: Soak a towel in full-strength household vinegar and drape it over hard water spots for 5 to 10 minutes. Rub clean, neutralize with a mild baking soda and water solution, rinse thoroughly, and dry with a soft cloth.
• Low spray pressure: Unscrew the spray head, pull out the rubber washer and screen filter, rinse away mineral sediment under running water, and reassemble.

Kitchen Faucets vs. Bathroom Centerset Faucets

Understanding how kitchen pulldown models differ from standard bathroom fixtures prevents unexpected surprises during DIY projects. For a deeper breakdown, explore our Complete Kitchen Sink Faucet Guide.

Key Differences in Bathroom vs Kitchen Moen Sink Faucet Install Projects

Bathroom centerset faucets mount on rigid 4-inch hole centers, integrating both handles and spout into a single base plate. Unlike kitchen installations that focus on pulldown hose clearance, bathroom faucet replacement involves installing mechanical lift rods and under-sink pop-up drain assemblies. Kitchen faucet installations prioritize counterweight clearance and flexible quick-connect lines.

Frequently Asked Questions About Faucet Installations

Refer to the official Moen Customer Support Hub for detailed model literature, video tutorials, or replacement parts.

How long does a DIY Moen kitchen faucet installation usually take?

A standard installation takes 1 to 2 hours for a DIYer. Thanks to pre-attached braided lines and proprietary Quick Connect Adaptors, mounting a new Moen fixture is fast once the old faucet is removed.

Do I need Teflon tape for Moen supply line connections?

No! Moen flexible braided supply lines feature factory-installed rubber compression gaskets. Wrapping Teflon tape around compression threads can actually prevent the rubber seal from seating properly and cause leaks.

What warranty covers my new Moen faucet and sink?

Moen provides a Limited Lifetime Warranty for original residential homeowners, covering manufacturing defects, leaks, drips, and finish defects. Moen stainless steel sinks carry a limited lifetime warranty, while commercial installations feature 5 to 10 years of coverage depending on the specific model. Be sure to register your product online after installation to streamline future customer service requests.

Conclusion

Installing your new Moen kitchen faucet is a rewarding DIY project that improves both the look and functionality of your kitchen. By following proper shutoff procedures, securing mounting brackets correctly, and flushing water lines before attaching the wand, you can enjoy a leak-free setup for years to come.
