What an Outdoor Sump Pump Installation Really Costs

For most homeowners, outdoor sump pump cost ranges from $1,000 to $3,000 for a professionally installed system. A simple installation using an existing basin and short discharge route may cost less, while a new exterior pit, buried drainage pipe, electrical work, or a dry well can push the total to $4,000 or more.

The biggest price drivers are:

• Pump and basin: About $150 to $900 for the pump, plus excavation if a new pit is needed
• Professional labor: Usually $500 to $1,700, often billed around $75 to $150 per hour
• Discharge routing: A buried line, long trench, or dry well adds substantial cost
• Electrical and permits: A dedicated GFCI outlet, conduit, and local permits may add a few hundred dollars

An outdoor sump pump collects groundwater or surface runoff in an exterior basin and moves it safely away from the foundation. It can be a practical fix for low yards, heavy clay soil, recurring pooling, and water pressure around a basement or crawl space.

This guide breaks down realistic 2026 costs, including backup systems, dry wells, maintenance, and the details to confirm in a contractor quote.

Comprehensive Breakdown of Total Outdoor Sump Pump Cost

Understanding how the overall project total comes together helps you evaluate quotes and choose the right components. Sump pump equipment alone can range anywhere from $75 for an entry-level residential unit to $900 or more for a premium cast iron model. When combined with professional installation, materials, and necessary exterior site work, the 2026 national installation benchmarks place the average project between $1,200 and $2,500.

Professional plumbing labor represents a substantial part of this investment. Licensed plumbers typically charge between $75 and $150 per hour. When projects require a dedicated exterior circuit, an electrician billing between $60 and $110 per hour may also be needed.

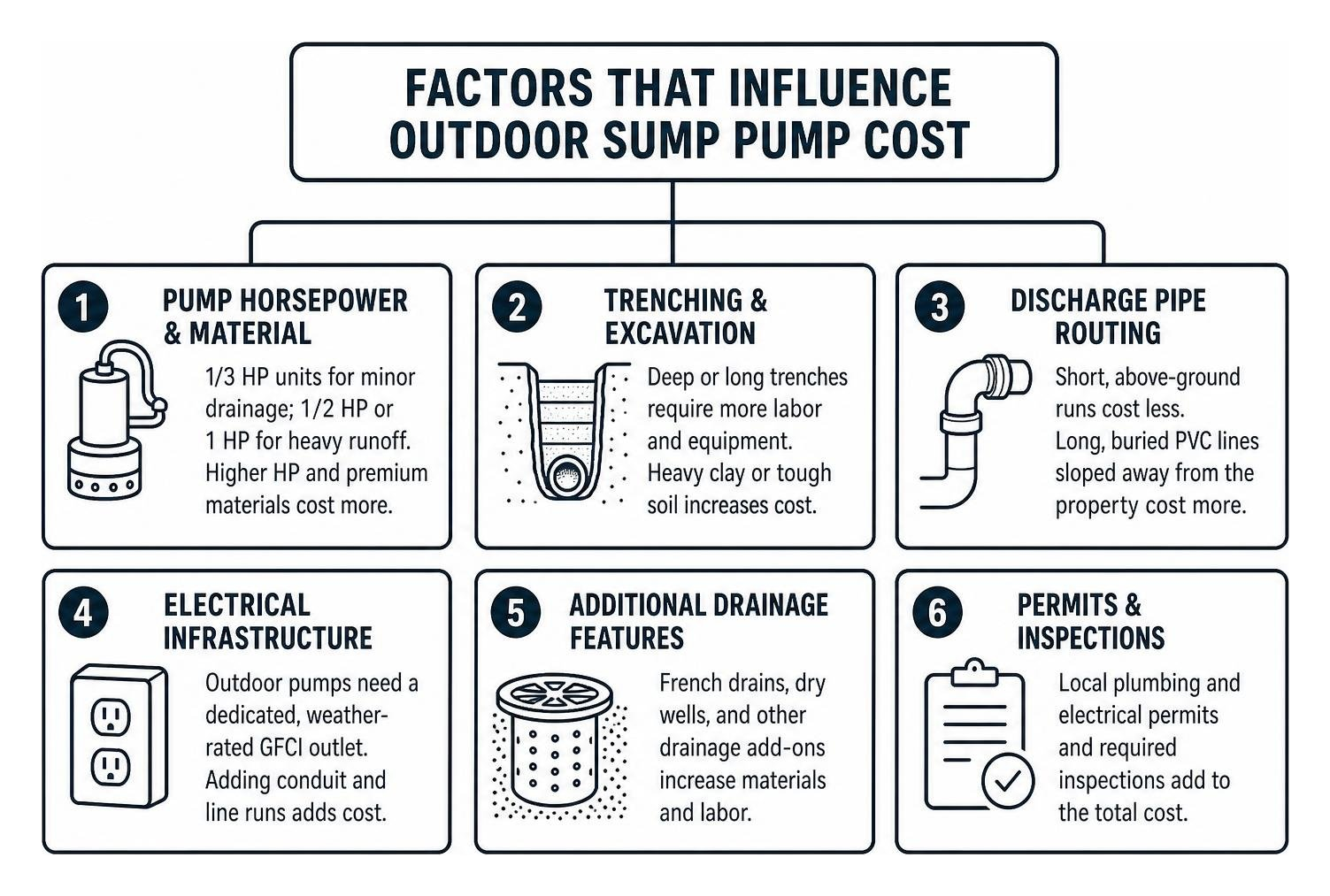

Factors That Influence Outdoor Sump Pump Cost

Several site-specific variables drive the final cost of an exterior drainage project:

• Excavation and Soil Composition: Heavy clay soils drain slowly and are tough to dig by hand, requiring mechanical trenching equipment that can add $100 to $300 per day in rental or labor costs.
• Pump Horsepower and Material: A 1/3 HP thermoplastic unit is cost-effective for minor drainage issues, while heavy rainwater runoff demands a 1/2 HP or 1 HP cast iron or stainless steel pump ($250 to $800 for the unit alone).
• Discharge Pipe Routing: Simple above-ground discharge runs cost between $150 and $400, whereas extended, buried PVC lines sloped away from the property range from $250 to $2,000 depending on length and trench depth.
• Structural and Foundation Protection: Managing exterior groundwater helps avoid expensive foundation water leak repair caused by excessive hydrostatic pressure pushing water through subterranean walls.
• Electrical Infrastructure: Outdoor pumps require a dedicated weather-rated GFCI outlet. Adding exterior conduit and electrical line runs from your main panel typically adds $150 to $400.
• Permitting Fees: Municipal exterior plumbing and electrical permits generally cost between $50 and $350 depending on local code guidelines.

Average Outdoor Sump Pump Cost by Installation Complexity

A direct pump replacement in an existing catch basin is the most budget-friendly scenario, typically costing between $350 and $1,000 including parts and labor.

When adding a completely new exterior sump pit, labor costs rise because your contractor must excavate the soil, line the pit with filter fabric, seat a heavy-duty basin, and pour at least 12 inches of gravel around the base for stability and filtration. This work typically adds $500 to $1,200 in labor alone.

For low-lying properties where water pools continuously, preventing a hidden water leak under house substructure often requires extensive trenching, long-distance discharge piping, and deep gravel beds, pushing comprehensive installations toward $3,000 to $5,500.

Comparing Pump Types, Backup Systems, and Drainage Options

Choosing the correct equipment ensures your yard drainage functions during intense seasonal downpours.

Submersible vs. Pedestal Pumps for Exterior Basins

For outdoor basins, submersible sump pumps are the standard choice. Because the motor sits inside a sealed waterproof housing submerged at the bottom of the basin, it stays protected from lawn debris, lawnmowers, and surface weather conditions. Submersible pumps operate quietly and provide flow rates up to 60 gallons per minute (GPM). Unit costs range from $150 to $800 depending on construction materials, with durable cast iron and stainless steel units offering superior thermal dissipation.

Pedestal pumps mount the motor on top of a shaft above the basin rim. While they are less expensive ($75 to $200 for the unit) and can last up to 25 to 30 years because the motor remains dry, they are generally impractical for outdoor yard use. Exterior pedestal motors remain directly exposed to lawn moisture, dirt, and wildlife, and they run significantly louder. More details on equipment lifespan can be found in this Sump Pump Cost Breakdown Guide.

Battery Backups and Water-Powered Auxiliary Systems

Heavy storms often bring power outages at the exact moment your drainage pump needs to work the hardest. Adding an auxiliary backup prevents yard pooling from overflowing toward your home:

• 12V Battery Backup Systems: These include a secondary DC pump, an intelligent smart-charging controller, and a sealed AGM deep-cycle battery. Complete installed systems cost between $600 and $1,500 ($200 to $600 for hardware alone) and supply 7 to 10 hours of continuous runtime.
• Water-Powered Backup Pumps: These systems use municipal water pressure to create a vacuum that siphons water out of the pit without electricity. Hardware costs between $200 and $700 ($350 to $900 installed). However, they require a constant municipal water connection and cannot run on private well systems during blackouts.

Standard Daylight Routing vs. Dry Well Installation Costs

Once water leaves the pump, it must be discharged where it will not cycle back toward the foundation:

• Daylight Gravity Discharge: Directing PVC pipe to a downward-sloping grade or pop-up emitter on your lawn costs between $250 and $1,000.
• Dry Well Systems: If your property lacks natural slope or municipal codes restrict street runoff, you may need a dry well. This involves excavating a large sub-surface gravel chamber ($1,500 to $3,500+) where discharge water can slowly percolate into the soil table. This prevents excess surface water that could trigger a basement drain backup inside lower living areas.

Outdoor vs. Indoor Sump Pump Installations: Key Differences

While both systems move water away from your home, exterior installations differ significantly from interior basement or crawl space systems:

1. Excavation Demands: Indoor installations often require breaking through a 4-inch concrete slab with jackhammers ($2,500 to $5,000 for a full retrofit). Outdoor installations involve yard digging in soil, which is faster and avoids indoor dust, though roots and buried utilities can add labor.
2. Basement Floor Drainage: An indoor system pairs with an interior drain tile system beneath the concrete, while an outdoor basin pairs with French drains or surface catch basins before runoff ever touches the walls. If you are experiencing interior moisture, you can read more about how a basement floor drain integrates with standard interior waterproofing.
3. Weatherproofing and Freeze Protection: Outdoor systems must use UV-resistant, heavy-duty lidded basins to keep out leaves, frogs, and yard debris. In cold weather, unburied discharge lines need proper slope or freeze-relief valves to prevent ice blockages that can burn out pump motors.

Long-Term Maintenance, Lifespan, and Replacement Costs

A quality outdoor submersible sump pump typically lasts 10 to 15 years with routine care, while mechanical float switches generally need replacement every 3 to 5 years ($50 to $150).

To keep your system running reliably:

• Quarterly Float Testing: Pour a bucket of water into the exterior basin every three months to verify that the float switch rises freely and activates the motor.
• Annual Basin Cleanout: Clear out silt, gravel, and organic debris from the bottom of the basin so the impeller does not clog.
• Check Valve Inspections: Ensure the inline check valve closes completely to stop discharged water from draining back into the pit.

Ignoring these checks can lead to sudden motor burnout during major rain events. If an unexpected failure occurs during a torrential storm, calling for emergency plumbing can lead to higher off-hours labor rates. Proactive replacements in an existing pit generally cost between $350 and $1,000.

Frequently Asked Questions About Outdoor Sump Pump Costs

How much does it cost to install an outdoor sump pump on average?

Most homeowners spend between $1,000 and $3,000 for a complete professional installation. Basic replacements start around $350 to $650, while complex systems with deep trenching, long discharge lines, and electrical connections range from $2,500 to $4,500.

Is a dry well installation more expensive than a standard outdoor sump pump?

Yes. A dry well requires deep excavation, geotextile fabric, structural dry well tanks or perforated barrels, and several yards of washed gravel backfill. Adding a dry well to your drainage system typically adds $1,500 to $3,500 to baseline installation costs.

How long does an exterior sump pump system last before replacement?

Submersible pumps installed in exterior basins typically last 10 to 15 years. Routine maintenance—such as clearing silt from the basin and replacing worn float switches every few years—ensures you get the maximum service life from the motor.

Securing Reliable Drainage for Your Property

Managing groundwater and exterior runoff protects your home’s foundation, basement, and landscaping from expensive water damage.
